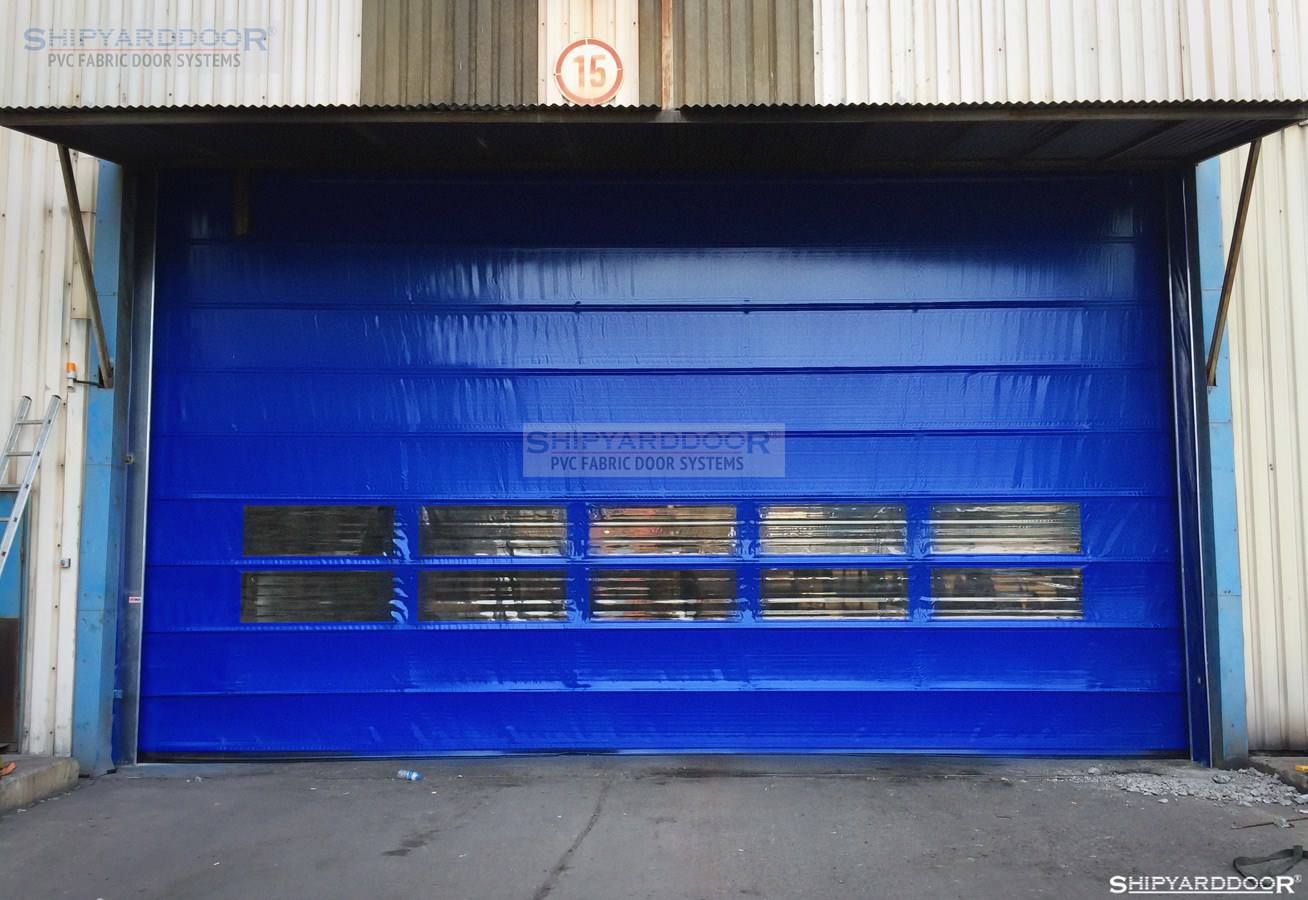

Large wind door
Large wind door type high speed door
GALLERY
SPECIFICATION
Speedd Flex® fold up doors are designed to meet expectation of clients for isolation and flexibility. The fold up Door is best solution to control environmental conditions, increase productivity and safety at your facilities.
High Speed fold up door can be utilized in manufacturing warehouse that have high MHE & Human traffic. It is best compatible and cost effective solution for isolation and long durability.
Shipyard door Speedd Flex® will help you control environment conditions.
Tailor- made Solutions
Standard Speed Flex® High Speed Fold-Up Door meet client’s standard requirement at even extreme conditions. On the other hand Shipyard door Speedd Flex® has a manufacturing flexibility. Our innovative R&D could design and manufacture the high speed doors according to client’s special requirements like special wind load, Special fire resistance, High isolations, desired speed, security etc... This is a flexible tailor- made solution for diffe-rent type door requirements.
Low Maintenance
Speed Flex fold up doors is designed in such a way that it doesn’t require any special maintenance. All parts are carefully selected for very minimal maintenance. No parts are welded in the structure to reduce wear & tear.
7/24 Operations
Strong and flexible design of Speed Flex Fold-Up Door provide all the bene-fits of high speed operation plus extreme life time and durability that can be operated 7/24.
Quality
Shipyarddoor policy is strict about quality. All high Speedd-Doors will under-go a 100% inspection on function and a visual examination before expor-ting and installing. Raw materials are carefully selected to enhance our qua-lity level. We have worldwide well trained authorised dealers and resellers have ability to provide service, maintenance and after sale requirements.
Excellent Sealing
A special feature that Speedd Flex® door have side sealing pocket make us stand unique in the market. This heavy duty PVC coated fabric has outstan-ding sealing feature, when door is closed even high windy conditions. Bottom sleeve seal supply weather and water resistance. This design also supply noi-seless operations you will never heard noise of steel or Aluminum track.
Envorimentally Frendly Products
Shipyarddoor high speed door is designed with Environmental concern, Using Speedd Flex high speed Door reduce your energy consumptions, ope-rational expenses, purchase cost and help to save environment. We carefully choose energy efficient motor and many metal parts from recycled materials as a responsible company that care our world.
TECHNICAL PROPERTIES
Body Structure
Standard high speed fold up Door thermal insulation value is U<4.5 W/m2.K. Isolated fold up Doors are available with double skin filled with isolated foam U<1.5 W/m2.K Sound attenuation 18 dB A capacity.
Insulation Data
Standard high speed fold up Door thermal insulation value is U<4.5 W/m2.K. Isolated fold up Doors are available with double skin filled with isolated foam U<1.5 W/m2.K Sound attenuation 18 dB A capacity.
Fire Resistance
Fire resistance of the fabric serves any fire safety regulations. Relative Stan-dard is DIN 4102-B1.These materials are difficult to ignite. They include ma-terials such as wood treated with a fire retardant and rigid foam plastics. A fire must extinguish itself when the source of the fire is removed.
Wind Resistance
The High speed foldup Doors is designed withstand dead load, seismic forces and design loads due to pressure and suction of wind calculated in accordance to applicable sections of building code. Specially designed Door is suitable for outside applications at standard wind resistance 80 km/h and Class 3 Annex ZA- (EN 13241:2011).
Control board
Control board is designed according to CE 2006/95 EC and NEMA ICS 2 Stan-dard to operate 3 phase motor with rotate switch. Audible and visual war-ning devices automatically signal for 5 seconds before any door section mo-vement, remain continuously on while the door is in motion and reset imme-diately after movement stops. IP 65 Box Emergency button Circuit Breakers Warning light Buzzer, Plug in technology
Options;
- Frequency converters control board with touch less button
- Mono phase operators.
Safety
Speed Flex® doors are manufactured under CE Standard Applicable Directi-ves 89/106/EC-99/93/E.
Applicable Standards: - EN 13241-1:2003+A1:2011-EN 12978:2008 and safety photocell, thermic resistance, Windows section, emergency button warning light and buzzer comes along with any standard door.
Bottom safety edge and pneumatic safety edge system is available as an op-tional.
Maximum Dimensions
High Speed Fold up door can be manufactured up to 42 sq. mt for outside applications and 100 sq. mt for inside applications.
Fabric
Specially selected fabric is suitable for long life. It has a high resistance against UV. VALMEX POLYMAR ® industrial Fire resist 900 gr/m2 1-2 mm 1100 Dtx B 6000 Panama SIO – LINE + DIN EN ISO 2286 – 2 –CE.
Tensile Straight 4300/4000 N/50 mm DIN 53354.
Tear Strength 500/500 N DIN 53363
Wide range fabric colours are available. Colour like (RAL 9002-9006-1001 -3001 – 5007-6001-7071) are readily available at our stock.
Speed
Speed Flex fold up door can be operated at standard 90 cm /sec and could be designed up to 150 cm/sec.
Motor And Gearbox
Motor power from 1HP upto 4HP, Operations Voltage 380-440 V 3Phase 50-60 Hz depends to dimensions of the doors. We prefer to use 3 Phase ope-rational voltage for continuous industrial operations. Worm hole Gearbox is chosen for special high torque requirement. All material are manufactured according to CE norm.
Operations
Speedd Flex® fabric door is guide up and down in the weather sealing verti-cal guides attached to the structure. Door is controlled by three buttons marked “Open,” “Closed,” and “Stop.” It is controlled by momentary pressure to open and constant pressure to close. (Reverse is available) it can be opera-ted with Radar, Remote controller, Metallic Loop Defectors, Pull rope switch as an options.
Loop detectors;
Together with the inductive loops laid beneath the surface, the LC series loop detectors form a universal sensor system for detecting vehicles and forklift. People are not detected.
Infrared Radar;
Opening impulse sensor for automatic doors and industrial doors i Motion sensor for people and objects.
Remote Controller;
Is a component of an electronic device to operate the device with radio frequency from a long distance (25 mt up to 100 mt)
Manual Operations;
In Emergency situations or when in case of power failure, Doors can be ope-rated manually by-
- A hand crank that is attached to the output shaft of motor. (Standard Feature)
- Connecting the door to a power generator would eliminate the problem in case of a power failure. (Optional)
